Long Working Life 1/4"~1 1/2" Orbital Welding Machine Water Cooling Design 6-38.1mm pipe 6G welding machine

Name: Long Working Life 14quot1 12quot Orbital Welding Machine Water Cooling Design 6381mm pipe 6G welding machine
Brand: Hyzont
Price: 1 USD

Wholesale Long Working Life 1/4"~1 1/2" Orbital Welding Machine Water Cooling Design 6-38.1mm pipe 6G welding machine from china suppliers

Brand Name : Hyzont

Model Number : MWF-40

Certification : CCC/CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 sets a Month

Delivery Time : 3 days

Packaging Details : Flight case

Name : Orbital Welding Machine

Brand : Hyzont

Model : MWF-40

Weld Type : Auto GTAW 6G welding

Applications : Carbon Steel or Stainless Steel Tube butt welding

Weld Tube OD : 1/4"~1 1/2"/6-38mm/

Weld Tube Thickness : 1-3mm

Cable Length : 6m/ Customized

Net Weight : 3kg

Warranty : 12months

Contact Now

Long Working Life 1/4"~1 1/2" Orbital Welding Machine Water Cooling Design 6-38.1mm pipe 6G welding machine

orbital welding refers to automated welding of secured tubes or pipes with the electrode rotating (or orbiting) around the tube.

It’s a specialised type of welding where the arc rotates 360 around the in-place object (pipe/tube) continuously

ADVANTAGES OF ORBITAL WELDING

BOOSTS PRODUCTIVITY
Automated processes such as orbital welding will definitely cut down the time and effort required to achieve the perfect weld. Apart from that, the time needed to set up the machine and the welding parameters is also much less.
HIGH PRECISION
As a mechanised process, there are additional options to include other functions to minimise human errors. This guarantees high precision and a flawless finish.
IMPROVED WORKPLACE SAFETY
During certain scenarios, it may be dangerous for a welder to operate. There’s when orbital welding is vital to reach places that manual welding simply cannot.

This system widely applied in medical, food, biology, electrics, instrument and pipe installation industries.

Semiconductor Industry
Food and beverage Industry
Hydraulic and fuel lines
Cold filtered draft beer lines
Nuclear industry
Pharmaceutical Piping Systems
Leek free Tube Welding
Ultra high purity Stainless Steel Tube Welding

Quick Details

Water circuit cooling design for long time working
Unique design of inner orientation gas circuit
Quick-install Clamps, easy to use

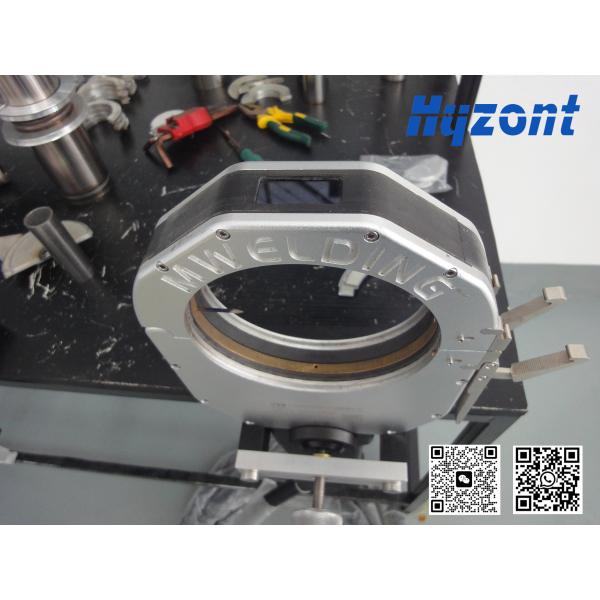

Compact and handy closed Welding Head whch made by aluminums alloy, light and durable
Germany Original Rotator Motor, Welding process stable and reliable
Adjustable parameter during welding process for some special welding requirements
Built-in various welding head parameters for accurate motion control

Specification

Model	MWF-40
Material	Carbon steel, Stainless Steel, Titanium Alloy
Tube Fitting	Straight tube, Pipe flange, Elbow butt joint;
Welding Process	TIG/GTAW (no wire feeding)
Tube OD(mm/inch)	6~38.1 /1/4"~1 1/2"
Tube Wall Thickness(mm)	≤3mm
Tungsten OD(mm)	1.6
Rotating	360 degree free rotated and Auto reset ;all position welding;
Rotation speed(rpm)	0.3~6
Protective Gas	Argon
Cooling	Water
Cooling Flow(ml/min)	1000ml/min
Cable Length	6m
Main Dimension(mm)
Weight(kg)	2kg
Dimension(mm)	37738100

Order Information:

Order Code	K20040
Packing	Flight case
Packing Size	650400200mm
Packing Weight	10Kg + 23Kg (Welding Power Source OBT-200)
Delivery Time	3 Days after payment
